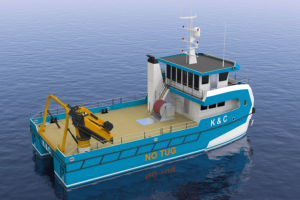

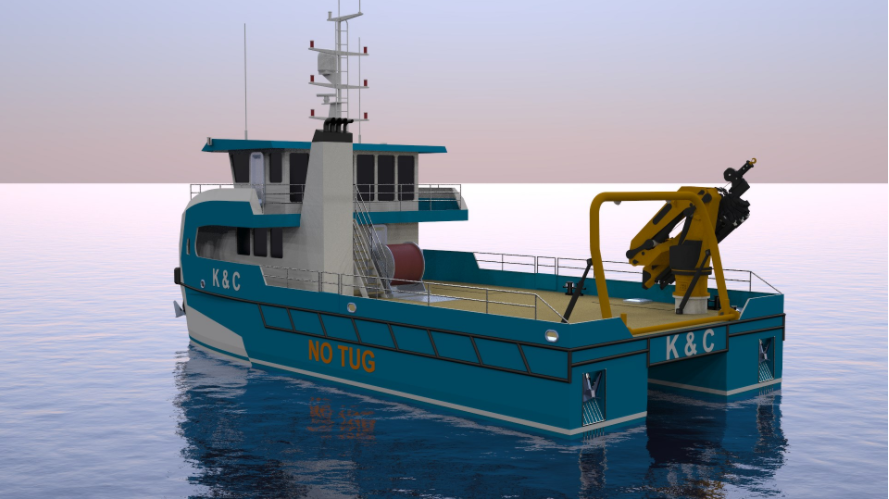

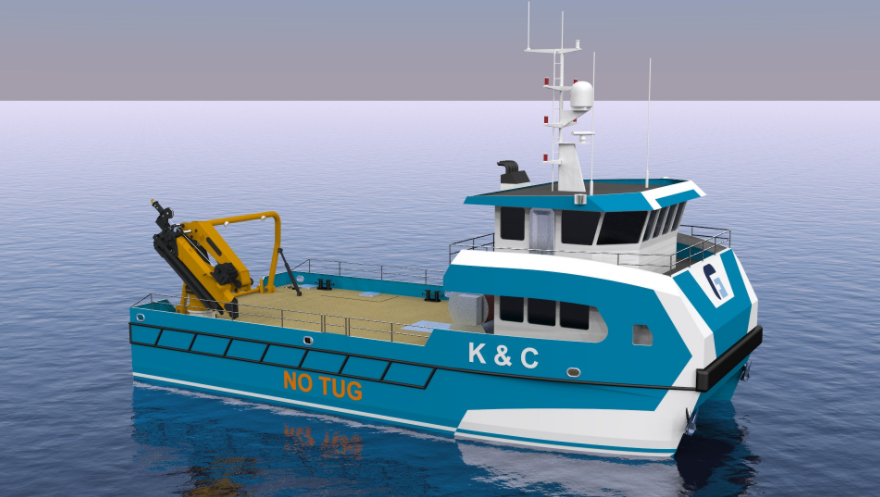

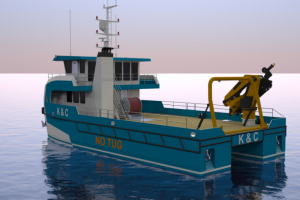

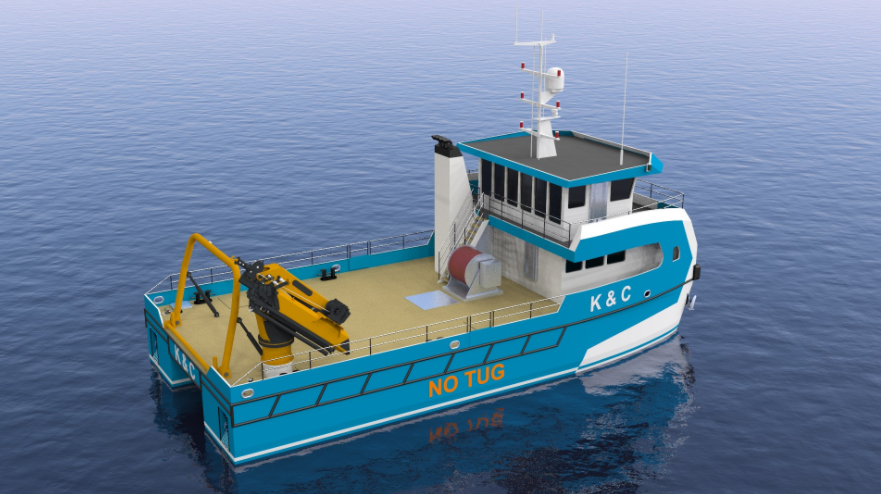

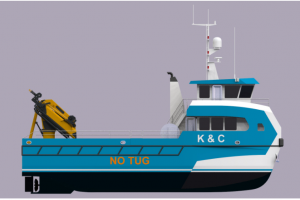

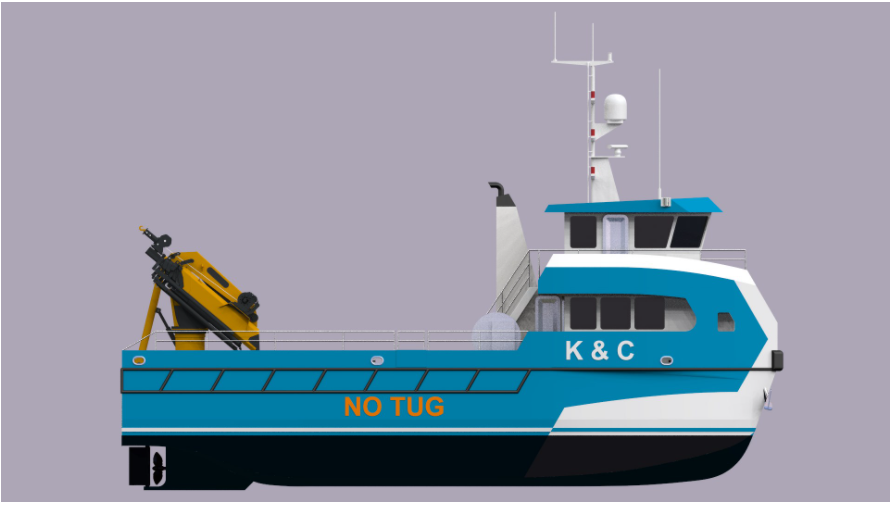

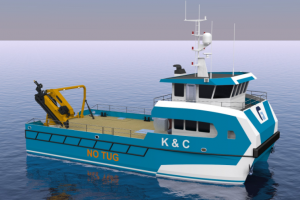

NEW BUILD – 17.5m Multi-Purpose Cat Workboat can be delivery 1 September 2021
SF1750 CAT is currently under construction at the shipyard’s facilities in Kherson (Ukraine).
The vessel has been specifically designed to assist in a very diverse range of diving activities and projects .
A new unit can be easily customized to operator’s requirements and can be delivered in around 6 months from order.
Dimensions
LOA: 17.5 mt
Beam: 8.0 mt
Depth: 3.0 m
Draft: 1.5 m
Machinery:
ME: 2 x 340 HP ( up to 2 x 600 HP optional)
DG: 1 x 100 kW, (1 x 140 kW optional), EDG: 1 x 30 kW

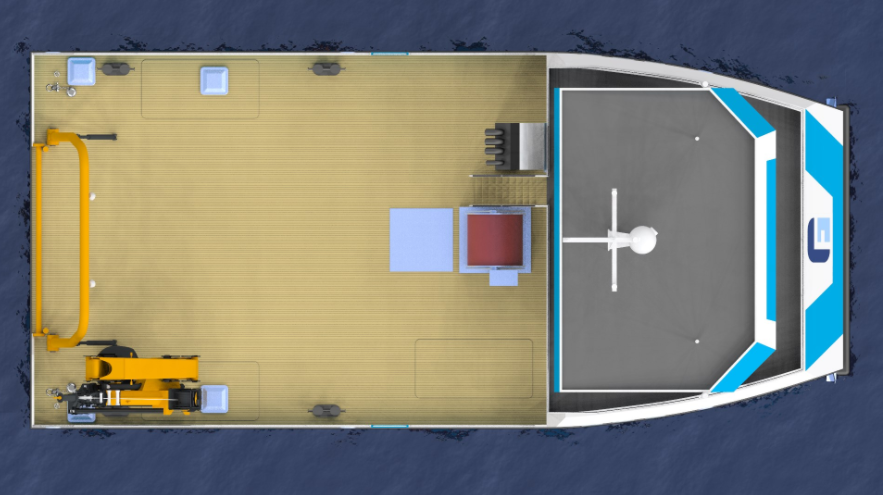

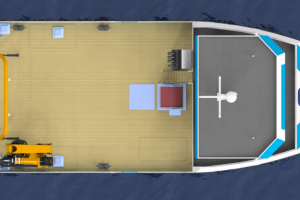

Deck:
Crane Heila 65 tm (or as per customers option)
A Frame crane:10 t H=3.4 meters
Bollard Pull
Min. 5 t at ME 2 x 340 HP (higher with different power options)
Tankage:
Fuel tanks: 2 x 12 ton (can be increased if required)
Fresh water tanks: 2 x 1.2 t
Oil tank: 1 x 200 L
Sewage tank: 1 x 1.0 t
Cabins:
3 Crew cabins for 6 to 8 members
Saloon / messroom
Full Galley
WC/Shower
Total number of passengers on board (berth) : up to 8
Heating:
Optional
Hydraulic package:
Hydraulic station will work for Crane (Heila) and A_Frame , total 65 kW
Air conditioning:
Bridge & passenger areas
Diving compressor room / workshop:
Type of compressor to be agreed with Owner
GMDSS:
A2 set
Lifesaving appliance:
1x 10 person life raft
Life jackets: 12
Work Life jackets: 8
Navigation set:
Radar 50 nm
Compass
Electronic chart plotter
Navigation Echosounder
EPIRB
NAVTEXT
VHF
Additional :
4 point anchor moorings (simple DP1)
Price fully equipped unit (A-Frame, large capacity crane, 4-point mooring system, etc.) delivered Norther Europe abut 14.000.000 DKK
